Future-Proofing Your Data Center with PanMPO:
The Next Generation of Fiber Solutions

— Published on 02 Jul 2025


Future-Proofing Your Data Center with PanMPO: The Next Generation of Fiber Solutions

In the past decade, 10G fiber connections were considered cutting-edge in data center environments. But with the rise of Artificial Intelligence (AI), cloud computing, and data-intensive workloads, the bandwidth demands have exploded — pushing the industry toward 400G and even 800G fiber connectivity as the new performance baseline.

For many, the once “future-proof” fiber infrastructures are already showing their limits. So how can data center operators keep pace without overhauling their entire network each time a new standard emerges? The answer lies in smarter design — and smarter connectors. Enter Panduit’s PanMPO™.


Understanding the Fiber Connector Landscape
Subscriber Connector, SC Lucent Connector, LC Multi-fiber Push-On, MPO

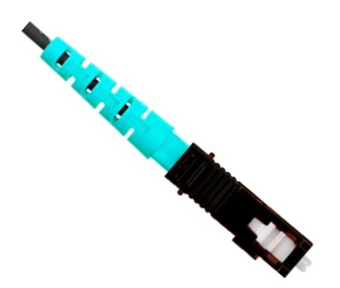

SC Connector

LC Connector

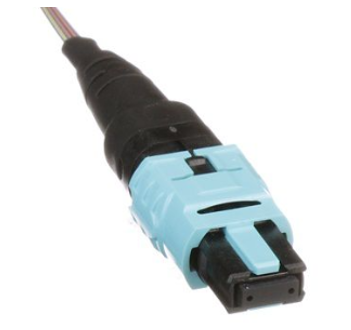

MPO Connector

Today’s fiber infrastructure uses a variety of connector types — from legacy models like ST and FC to more current options such as SC, LC, SN, CS, and MPO. Among these, SC, LC, and MPO remain the most widely adopted, thanks to their compatibility with most active network equipment and pluggable transceivers.


What Makes MPO and PanMPO Different?

MPO connectors are essential in high-density environments like data centers, supporting 8, 12, 24, or more fibers within a single rectangular ferrule. But traditional MPO connectors have one major limitation — fixed polarity and gender set during manufacturing.

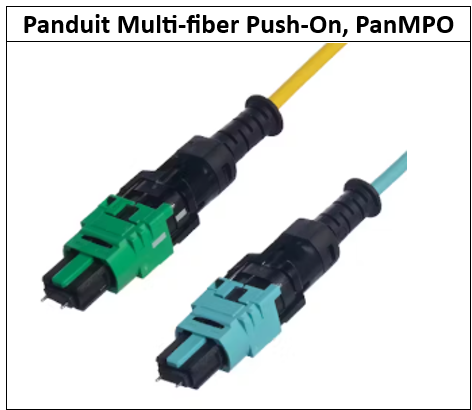

That’s where Panduit’s PanMPO™ connector stands out. This field-switchable solution allows on-site changes to polarity and gender, giving your network unmatched adaptability. Instead of discarding or replacing cables due to mismatches, PanMPO lets you adjust them instantly — saving time, cost, and operational risk.



Scaling Speed with the Right Transceivers

Scaling Speed with the Right Transceivers

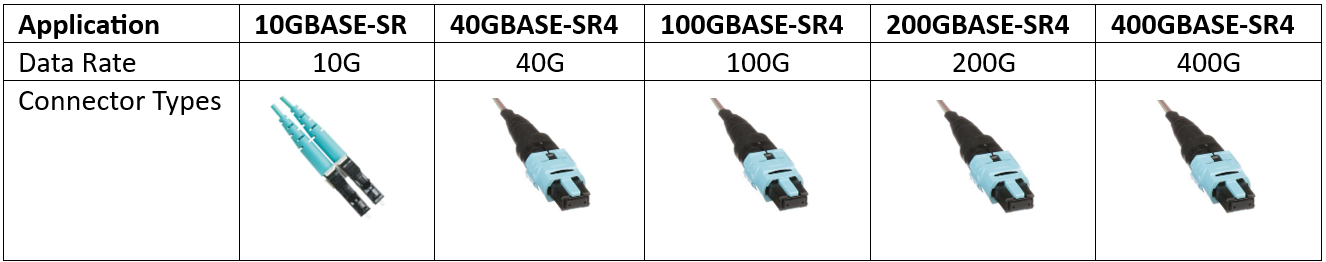

Fiber pluggable transceivers play a key role in enabling high-speed connections. Below is a simplified view of multimode transceivers and the data rates they support — many of which rely on MPO-12 connectors.

As data centers continue to push beyond 10G, the MPO-12 connector remains a scalable and future-ready option for delivering higher bandwidth — without having to rewire the entire system.


Why PanMPO is the Smarter Long-Term Investment

In today’s data centers, speed, simplicity, and reliability are critical. The PanMPO solution supports this trifecta by offering:

  • Easy migration from 10G to 40G, 100G, and beyond
  • Reduced installation time and complexity
  • Long-term cost efficiency (CAPEX-friendly)
  • Compatibility with Panduit’s high-performance backbone cabling

By deploying PanMPO-enabled backbone cabling, data centers can support today’s needs while laying the groundwork for seamless, tool-less upgrades tomorrow.

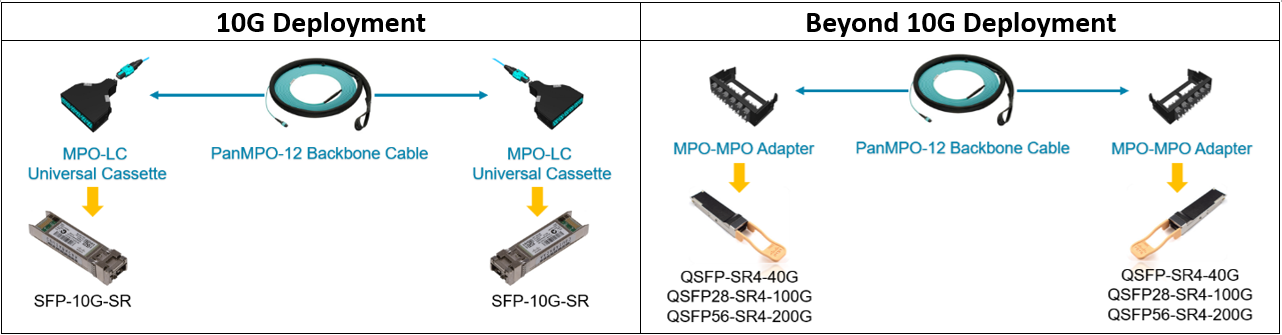

10G vs. Beyond 10G Deployment


Conclusion: Design for Now, Plan for the Future

The pace of digital transformation won’t slow down. But with the right infrastructure strategy — powered by Panduit’s PanMPO technology — your data center can stay ahead of the curve.

From reducing downtime to accelerating deployment and keeping costs manageable, PanMPO is more than just a connector — it’s a cornerstone for scalable, high-speed fiber architecture.

#FiberOptics #DataCenter #MPOConnectors #PanMPO #HighSpeedNetworking #FutureProof #ScalableInfrastructure #10Gto400G #NetworkUpgrades #CAPEXOptimization #DataCenterDeployment #NextGenNetworking #StructuredCabling #FiberTransceivers #BackboneCabling #TechInfrastructure #DigitalTransformation #ConnectivitySolutions #DataCenterDesign #NetworkInfrastructure
